CascadeTeq UHB pSRAM CSL6408SB-A4
CSL6408SB-A4

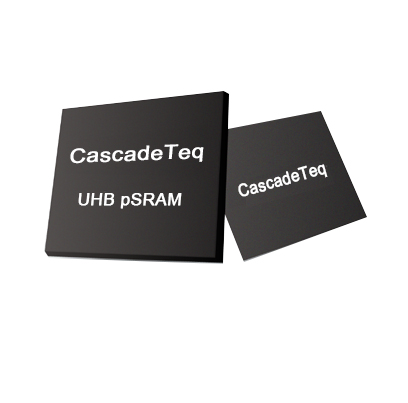

CSL6408SB-A4 is a 64 Mbit Ultra-High-Bandwidth pseudo-SRAM (UHB pSRAM) from Kaixin, organized as 8 Mbit × 8. It supports triple-supply operation at 1.8 V, 1.2 V, or an ultra-low 0.6 V, and is housed in a TBD package. Leveraging UHB performance, it delivers high-speed read/write throughput while retaining pSRAM’s simple interface and strong storage adaptability. The triple-voltage design maximizes power-scaling flexibility: the 0.6 V rail slashes standby or low-load consumption to a minimum. Ideal for space- and energy-constrained applications such as entry-level smart wearables (basic health bands), ultra-low-power IoT sensors, and miniature embedded control modules.
Founded in 2009 in Hsinchu, Taiwan, CascadeTeq is the global leader in low-pin-count standard pSRAM (LPC pSRAM). Leveraging a strategic 25 nm DRAM alliance with PSMC, the company delivers a 16–256 Mb portfolio across SPI, QSPI and Octal-DDR interfaces that runs up to 3.2 Gbps at 200 MHz. On-die self-refresh eliminates external controllers, cuts standby current to 5 µA and keeps active draw below 5 mA, while 2 mm×3 mm USON-8 (and larger QFN/BGA) packages and single 1.8–3.3 V supply cover –40 °C to +105 °C, meeting AEC-Q100 Grade 2 for automotive use. Already shipping in smart cameras, industrial gateways, wearables, e-bike dashboards and in-vehicle voice modules, CascadeTeq is supported in mainland China by Mandu Technology, which provides rapid samples, technical support and custom storage solutions to shorten customers’ development cycles.
--64Mb OPI pSRAM--
| Part Number | Product Type | Density | Org. | Pkg. | Voltage | Download |
| CSS6408SB-LI | OPI pSRAM | 64Mbit | 8Mbx8 | BGA-24 | 1.8V | Not yet |
| CSS6408SB-LJ | OPI pSRAM | 64Mbit | 8Mbx8 | BGA-24 | 1.8V | Not yet |
| CSS6408SO-LI | OPI pSRAM | 64Mbit | 8Mbx8 | QFN-16 | 1.8V | Not yet |
| CSS6408SQ-LJ | OPI pSRAM | 64Mbit | 8Mbx8 | QFN-16 | 1.8V | Not yet |
| CSS6408LB-L | OPI pSRAM | 64Mbit | 8Mbx8 | BGA-24 | 3.3V | Not yet |
| CSS6408LB-LJ | OPI pSRAM | 64Mbit | 8Mbx8 | BGA-24 | 3.3V | Not yet |
| CSS6408LQ-L | OPI pSRAM | 64Mbit | 8Mbx8 | QFN-16 | 3.3V | Not yet |
| CSS6408LQ-LJ | OPI pSRAM | 64Mbit | 8Mbx8 | QFN-16 | 3.3V | Not yet |
--128Mb OPI pSRAM--
| Part Number | Product Type | Density | Org. | Pkg. | Voltage | Download |
| CSS12808LB-L | OPI pSRAM | 128Mbit | 16Mbx8 | BGA-24 | 3.3V | Not yet |
| CSS12808LB-LJ | OPI pSRAM | 128Mbit | 16Mbx8 | BGA-24 | 3.3V | Not yet |
| CSS12808LQ-L | OPI pSRAM | 128Mbit | 16Mbx8 | QFN-16 | 3.3V | Not yet |
| CSS12808LQ-LJ | OPI pSRAM | 128Mbit | 16Mbx8 | QFN-16 | 3.3V | Not yet |
| CSS12808SB-LI | OPI pSRAM | 128Mbit | 16Mbx8 | BGA-24 | 1.8V | Not yet |
| CSS12808SB-LJ | OPI pSRAM | 128Mbit | 16Mbx8 | BGA-24 | 1.8V | Not yet |
| CSS12808SQ-L | OPI pSRAM | 128Mbit | 16Mbx8 | QFN-16 | 1.8V | Not yet |
| CSS12808SQ-LJ | OPI pSRAM | 128Mbit | 16Mbx8 | QFN-16 | 1.8V | Not yet |
--256Mb OPI pSRAM--
| Part Number | Product Type | Density | Org. | Pkg. | Voltage | Download |
| CSS25608SB-N | OPI pSRAM | 256Mbit | 32Mbx8 | BGA24 | 1.8V | Not yet |
| CSS25608SB-NJ | OPI pSRAM | 256Mbit | 32Mbx8 | BGS-24 | 1.8V | Not yet |
| CSS25608SQ-N | OPI pSRAM | 256Mbit | 32Mbx8 | QFN-16 | 1.8V | Not yet |
| CSS25608SQ-NJ | OPI pSRAM | 256Mbit | 32Mbx8 | QFN-16 | 1.8V | Not yet |
