TI Boost Regulator LM5157RTER
LM5157RTER

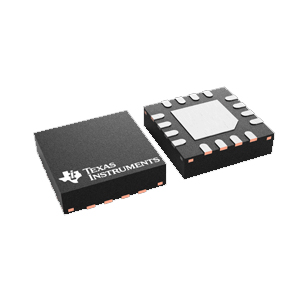

LM5157RTER, a TI automotive 6.5 A (peak) non-sync boost/SEPIC/flyback controller, operates from 2.9 V–45 V (50 V transient) and delivers up to 48 V out. Adjustable 100 kHz–2.2 MHz switching with external sync and dual random spread-spectrum cuts EMI; integrated 45 mΩ, 50 V switch yields >95 % efficiency while drawing 670 µA quiescent and 2.6 µA shutdown. Housed in 3 mm×3 mm QFN-16, it provides cycle-by-cycle current limit, OTP, OVP, UVLO, soft-start and power-good, –40 °C to +125 °C junction, AEC-Q100 Grade 1 qualified—ideal for high-power, high-reliability automotive LED, audio amp, industrial PLC and battery-boost applications.
TI’s SIMPLE SWITCHER® is a 30-year “plug-and-play” power platform spanning 0.5-10 A, 2.7-100 V buck/boost/buck-boost converters with internal compensation, synchronous rectification and optional 200 kHz-2.5 MHz spread-spectrum for 96 % efficiency and CISPR 25/32 compliance. AEC-Q100 Grade 1 qualified (–40 °C to +150 °C, 50 G vibration), the Nano module measures 3.5 mm × 3.5 mm and needs only three external parts. With WEBENCH® designers can finish a supply in 10 minutes; the family has shipped over 1 billion units into automotive ADAS, industrial PLCs, telecom base-stations and IoT.As a distributor, Mandu Technology offers customers a wide variety of storage-product solutions.
--Analogwin DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| AWK6613ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6613BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6613CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6612ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6612BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6612CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6942ABTBR | Buck | 3V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| AWK6943ABTER | Buck | 3V~36V | 3A | 410kHz | QFN-8 | Download |
| AWK6809DDR | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| AWK6616 | Buck | 3V~42V | 6A | 200kHz to 2.2MHz | QFN-14 | Not yet |
| AWT3478 | Boost | 3V to 45V | 1A | 100kHz to 1MHz | MSOP8SOIC8 | Not yet |
| AWT5157BER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--TI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LMR33630ADDA | Buck | 3.8V~36V | 3A | 400kHz | HSOIC8 | Not yet |
| LMR33630BDDA | Buck | 3.8V~36V | 3A | 1.4MHz | HSOIC8 | Not yet |
| LMR33630CDDA | Buck | 3.8V~36V | 3A | 2.1MHz | HSOIC8 | Not yet |
| LMR33630ARNX | Buck | 3.8V~36V | 3A | 400kHz | VQFN12 | Not yet |
| LMR33630BRNX | Buck | 3.8V~36V | 3A | 1.4MHz | VQFN12 | Not yet |
| LMR33630CRNX | Buck | 3.8V~36V | 3A | 2.1MHz | VQFN12 | Not yet |
| LM61440AANRJRR | Buck | 3V~36V | 4A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM61460AANRJRR | Buck | 3V~36V | 6A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM3478MAX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MA/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MM/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM3478MMX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM5157RTER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--MPS DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| MP9942GJ | Buck | 4V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP4420GJ | Buck | 4V~30V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP9943GQ | Buck | 4V~36V | 3A | 410kHz | QFN-8 | Download |
| MP4423GQ | Buck | 4V~30V | 3A | 410kHz | QFN-8 | Not yet |
--ADI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LT8609AEDDM-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-TRPBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AJDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
