Analogwin Synchronous Buck Regulator AWK6809DDR
AWK6809DDR

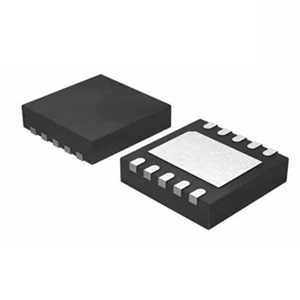

AWK6809DDR is Analogwin’s AEC-Q100 Grade 1, 3 A synchronous buck regulator accepting 3 V–42 V input and switching from 200 kHz to 2.2 MHz with external sync. Housed in a 3 mm×3 mm DFN-10, it integrates 90 mΩ/40 mΩ MOSFETs to deliver >92.5 % efficiency (12 V→5 V/3 A) while drawing only 5 µA quiescent and <1 µA shutdown current. Spread-spectrum, internal compensation, programmable soft-start and 45 ns minimum on-time cut EMI; cycle-by-cycle current limit, hiccup short-circuit, OTP and UVLO protect the part across –40 °C to +125 °C junction. Ideal for automotive infotainment, ADAS, industrial gateways and battery-powered systems demanding wide-vin, high-efficiency, low-noise power.
Founded in 2021 in Shanghai Lingang, Analogwin’s team hails from top-tier global semiconductor suppliers and focuses on AEC-Q100 Grade 1 power-management and signal-chain ICs for automotive and industrial markets. Its portfolio spans Buck, Boost, AC-DC and more, operating from 2.9 V to 60 V with ≥95 % efficiency and 5 µA quiescent current. All devices survive 50 g vibration and 60 000 P/E cycles, integrate digital programmability and spread-spectrum EMI reduction, and fit into 3 mm×3 mm packages. The chips are in volume production for in-vehicle infotainment, ADAS, industrial PLCs, energy-storage BMS and telecom base stations, giving customers a one-stop, high-efficiency and high-reliability power-plus-signal-chain solution.As a distributor, Mandu Technology offers customers a wide variety of storage-product solutions.
--Analogwin DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| AWK6613ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6613BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6613CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6612ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6612BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6612CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6942ABTBR | Buck | 3V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| AWK6943ABTER | Buck | 3V~36V | 3A | 410kHz | QFN-8 | Download |
| AWK6809DDR | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| AWK6616 | Buck | 3V~42V | 6A | 200kHz to 2.2MHz | QFN-14 | Not yet |
| AWT3478 | Boost | 3V to 45V | 1A | 100kHz to 1MHz | MSOP8SOIC8 | Not yet |
| AWT5157BER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--TI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LMR33630ADDA | Buck | 3.8V~36V | 3A | 400kHz | HSOIC8 | Not yet |
| LMR33630BDDA | Buck | 3.8V~36V | 3A | 1.4MHz | HSOIC8 | Not yet |
| LMR33630CDDA | Buck | 3.8V~36V | 3A | 2.1MHz | HSOIC8 | Not yet |
| LMR33630ARNX | Buck | 3.8V~36V | 3A | 400kHz | VQFN12 | Not yet |
| LMR33630BRNX | Buck | 3.8V~36V | 3A | 1.4MHz | VQFN12 | Not yet |
| LMR33630CRNX | Buck | 3.8V~36V | 3A | 2.1MHz | VQFN12 | Not yet |
| LM61440AANRJRR | Buck | 3V~36V | 4A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM61460AANRJRR | Buck | 3V~36V | 6A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM3478MAX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MA/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MM/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM3478MMX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM5157RTER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--MPS DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| MP9942GJ | Buck | 4V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP4420GJ | Buck | 4V~30V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP9943GQ | Buck | 4V~36V | 3A | 410kHz | QFN-8 | Download |
| MP4423GQ | Buck | 4V~30V | 3A | 410kHz | QFN-8 | Not yet |
--ADI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LT8609AEDDM-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-TRPBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AJDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
