Analogwin Boost Regulator AWT3478
AWT3478

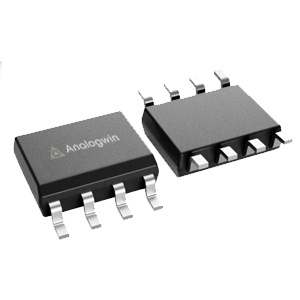

AWT3478 is Analogwin’s AEC-Q100 Grade 1, 1 A synchronous boost converter operating from 3 V–45 V with 100 kHz–1 MHz adjustable switching, offered in MSOP-8 and SOIC-8. Integrating 120 mΩ high-/low-side MOSFETs, it reaches 92 % peak efficiency while drawing 20 µA in Burst mode and <1 µA shutdown. On-chip soft-start, cycle-by-cycle current limit, OVP, hiccup short-circuit, OTP and UVLO are included, plus 100 % duty-cycle pass-through. Junction –40 °C to +125 °C, ideal for automotive LED drivers, industrial sensors, battery backup and portable equipment demanding wide-input step-up performance.
Founded in 2021 and headquartered in Shanghai’s Pudong New Area, Analogwin (Shanghai Xinxiangcheng Semiconductor) is a fabless company whose core team hails from top-tier global semiconductor houses. It specializes in developing and selling industrial- and automotive-grade power-management ICs—DC-DC converters—and high-performance signal-chain products for fast-growing markets such as automotive, industrial, energy-storage and communications. Its DC-DC portfolio, exemplified by the automotive-qualified AWK6809, offers wide-input operation (3 V–42 V), peak efficiency above 92.5 %, ultra-low 5 µA quiescent current and superior EMI performance, all qualified for –40 °C to +125 °C. These devices are now widely used in smart cockpit electronics, new-energy-vehicle powertrains and industrial-control systems, providing customers with innovative, differentiated and highly reliable power solutions.As a distributor, Mandu Technology offers customers a wide variety of storage-product solutions.
--Analogwin DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| AWK6613ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6613BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6613CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6612ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6612BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6612CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6942ABTBR | Buck | 3V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| AWK6943ABTER | Buck | 3V~36V | 3A | 410kHz | QFN-8 | Download |
| AWK6809DDR | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| AWK6616 | Buck | 3V~42V | 6A | 200kHz to 2.2MHz | QFN-14 | Not yet |
| AWT3478 | Boost | 3V to 45V | 1A | 100kHz to 1MHz | MSOP8SOIC8 | Not yet |
| AWT5157BER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--TI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LMR33630ADDA | Buck | 3.8V~36V | 3A | 400kHz | HSOIC8 | Not yet |
| LMR33630BDDA | Buck | 3.8V~36V | 3A | 1.4MHz | HSOIC8 | Not yet |
| LMR33630CDDA | Buck | 3.8V~36V | 3A | 2.1MHz | HSOIC8 | Not yet |
| LMR33630ARNX | Buck | 3.8V~36V | 3A | 400kHz | VQFN12 | Not yet |
| LMR33630BRNX | Buck | 3.8V~36V | 3A | 1.4MHz | VQFN12 | Not yet |
| LMR33630CRNX | Buck | 3.8V~36V | 3A | 2.1MHz | VQFN12 | Not yet |
| LM61440AANRJRR | Buck | 3V~36V | 4A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM61460AANRJRR | Buck | 3V~36V | 6A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM3478MAX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MA/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MM/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM3478MMX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM5157RTER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--MPS DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| MP9942GJ | Buck | 4V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP4420GJ | Buck | 4V~30V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP9943GQ | Buck | 4V~36V | 3A | 410kHz | QFN-8 | Download |
| MP4423GQ | Buck | 4V~30V | 3A | 410kHz | QFN-8 | Not yet |
--ADI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LT8609AEDDM-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-TRPBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AJDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
