Analogwin Boost Regulator AWT5157BER
AWT5157BER

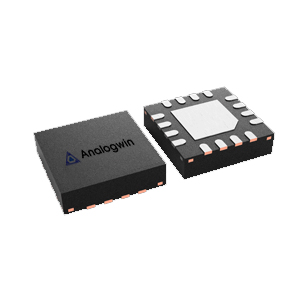

AWT5157BER is Analogwin’s AEC-Q100 Grade 1, 6.5 A synchronous boost converter with 2.9 V–45 V input and 100 kHz–2.5 MHz adjustable/sync-able switching in a 3 mm×3 mm QFN-16. Featuring 20 mΩ low-RDS(on) high-/low-side MOSFETs, it achieves >95 % peak efficiency and consumes only 25 µA in Burst mode (<1 µA shutdown). Functions include programmable soft-start, peak-current limit, hiccup OVP/SCP, OTP, UVLO, and PGOOD, with 40 ns minimum on-time. Operating from –40 °C to +150 °C junction, it targets high-current, high-density automotive LED headlights, ADAS supplies, industrial boost stages, and distributed power systems.
Founded in 2021 in Shanghai, Analogwin (Xinxiangcheng) is a fabless company whose core team came from top-tier global semiconductor suppliers. It focuses on AEC-Q100 qualified power-management ICs for automotive and industrial markets. The portfolio covers buck, boost and buck-boost converters that operate from 2.9 V to 45 V, achieve ≥95 % peak efficiency and consume only 5 µA quiescent current at light load. Every device is qualified for –40 °C to +150 °C junction temperature, 50 g vibration, 1 000-hour HTOL and >30 000 P/E cycles while housed in ultra-compact packages with minimal external parts. These converters are already in volume production for automotive infotainment, ADAS, industrial gateways, energy-storage BMS, telecom base-stations and security systems, offering automotive, industrial, energy-storage and communications customers highly reliable, small-size and low-EMI power solutions.As a distributor, Mandu Technology offers customers a wide variety of storage-product solutions.
--Analogwin DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| AWK6613ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6613BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6613CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6612ABFAR | Buck | 3V~36V | 3A | 400kHz | ESOP8 | Not yet |
| AWK6612BBFAR | Buck | 3V~36V | 3A | 1.4MHz | ESOP8 | Not yet |
| AWK6612CBFAR | Buck | 3V~36V | 3A | 2.1MHz | ESOP8 | Not yet |
| AWK6942ABTBR | Buck | 3V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| AWK6943ABTER | Buck | 3V~36V | 3A | 410kHz | QFN-8 | Download |
| AWK6809DDR | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| AWK6616 | Buck | 3V~42V | 6A | 200kHz to 2.2MHz | QFN-14 | Not yet |
| AWT3478 | Boost | 3V to 45V | 1A | 100kHz to 1MHz | MSOP8SOIC8 | Not yet |
| AWT5157BER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--TI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LMR33630ADDA | Buck | 3.8V~36V | 3A | 400kHz | HSOIC8 | Not yet |
| LMR33630BDDA | Buck | 3.8V~36V | 3A | 1.4MHz | HSOIC8 | Not yet |
| LMR33630CDDA | Buck | 3.8V~36V | 3A | 2.1MHz | HSOIC8 | Not yet |
| LMR33630ARNX | Buck | 3.8V~36V | 3A | 400kHz | VQFN12 | Not yet |
| LMR33630BRNX | Buck | 3.8V~36V | 3A | 1.4MHz | VQFN12 | Not yet |
| LMR33630CRNX | Buck | 3.8V~36V | 3A | 2.1MHz | VQFN12 | Not yet |
| LM61440AANRJRR | Buck | 3V~36V | 4A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM61460AANRJRR | Buck | 3V~36V | 6A | 200kHz to 2.2MHz | VQFN-14 | Not yet |
| LM3478MAX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MA/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | SOIC8 | Not yet |
| LM3478MM/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM3478MMX/NOPB | Boost | 3V to 45V | 1A | 100kHz to 1MHz | VSSOP8 | Not yet |
| LM5157RTER | Boost | 2.9V to 45V | 6.5A | 100kHz to 2.5MHz | QFN-16 | Not yet |
--MPS DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| MP9942GJ | Buck | 4V~36V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP4420GJ | Buck | 4V~30V | 2A | 400kHz | TSOT23-8 | Not yet |
| MP9943GQ | Buck | 4V~36V | 3A | 410kHz | QFN-8 | Download |
| MP4423GQ | Buck | 4V~30V | 3A | 410kHz | QFN-8 | Not yet |
--ADI DCDC--
| Part Number | Catalog | Voltage | IO | Frequency | Pkg. | Download |
| LT8609AEDDM-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-TRPBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AEDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
| LT8609AJDDM-3.3-PBF | Buck | 3V~42V | 3A | 200kHz to 2.2MHz | DFN-10 | Not yet |
