Cost‑effective & High‑reliability BLDC Motor Control Solution for Fascia Guns by Cmsemicon

With the growing number of fitness enthusiasts, fascia guns have become a common small‑home appliance for daily muscle relaxation, with steady growth in market sales. Whether for household use or professional sports applications, users are raising higher requirements for fascia guns in terms of noise, impact force, battery life and stability. Meanwhile, manufacturers prefer simpler circuits, lower costs and easier mass production. To meet these industry demands, Cmsemicon has developed a tailor‑made motor control solution for fascia guns. Featuring low noise, strong impact force and high integration with simple peripheral circuits, it provides complete mass‑production support and is compatible with most fascia gun products on the market.

The whole solution adopts brushless DC (BLDC) motor control design. The MCU integrates a 12‑bit ADC, operational amplifiers and PGA gain amplifiers, combined with a P+N drive structure. High chip integration reduces peripheral components, cutting material costs and improving overall machine stability. The algorithm is specially optimized for smooth, jitter‑free sensorless startup with a 100% success rate and low startup noise, delivering better user experience. Supporting both sensored and sensorless motors, it is compatible with most mainstream BLDC motors. One single solution can serve multiple models with strong versatility. It maintains constant rotating speed and intelligent power limiting during operation. Even under pressing force, impact output remains stable, reducing power consumption and extending battery life. In addition, the solution features comprehensive protection functions against abnormal voltage, overcurrent, over‑temperature, short circuit and locked‑rotor conditions, minimizing failure rates and extending product service life.

The promoted CMS8M3524S024 + PNMOS solution perfectly fits mass‑production requirements for civilian fascia guns. This dedicated MCU features strong anti‑interference performance to withstand long‑term high‑frequency vibration in fascia gun operation. Paired with PNMOS power devices, it delivers a simple circuit with controllable cost, high torque and low noise, fully meeting production standards for mainstream consumer fascia guns.

The hardware architecture is clearly divided into five modules: power supply, main control, drive, sampling and human‑machine interface (HMI), facilitating engineer debugging and after‑sales maintenance. The power supply module provides stable voltage; the main control chip processes algorithms and operational logic; the drive circuit controls motor rotation; the sampling circuit monitors real‑time voltage, current and temperature to enable multi‑protection functions; the user‑friendly HMI supports gear switching and status indication for easy operation.

This solution effectively solves common drawbacks of ordinary fascia guns including high noise, weak impact, short battery life and startup stalling. Its high‑integration design lowers R&D and production barriers, with wide motor compatibility to help manufacturers rapidly launch new products. Cmsemicon offers one‑stop technical support including chips, reference circuits and control algorithms, enabling enterprises to achieve mass production and market launch without complicated development.

The fascia gun market maintains robust growth. Balancing performance and cost, the CMS8M3524S024 + PNMOS solution fully satisfies current industry mass‑production demands. Moving forward, Cmsemicon will continuously optimize motor algorithms, reduce power consumption and enhance intelligence, providing cost‑effective and highly stable motor control solutions for the massage equipment industry.

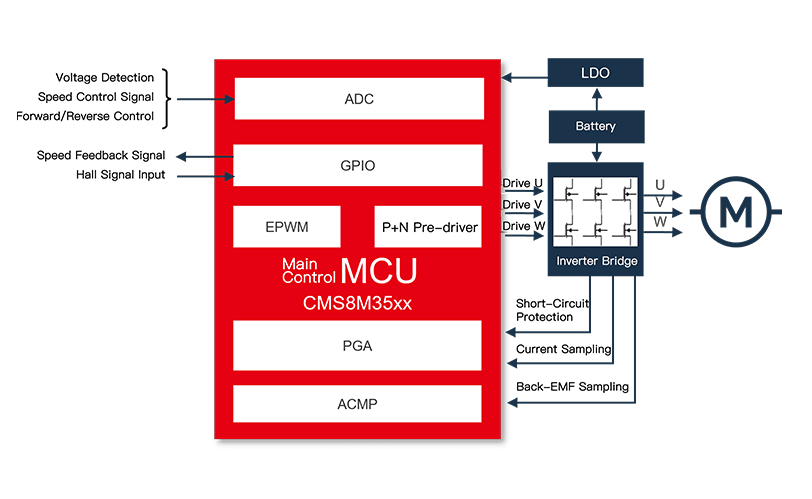

Application Block Diagram：
